Product Specifications

General

1. Input Voltage: 230V, 220V, 240V
2. Output Voltage: 230V
3. Rated power in W: 2100W
4. Rated Power in VA: 3000 VA
5. Plug standard: IEC 60320 C20

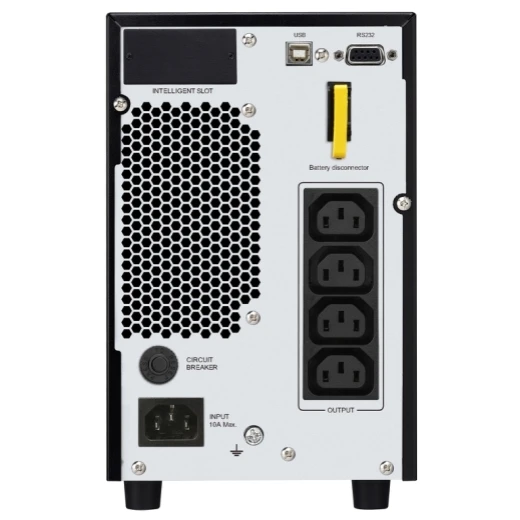

6. Output connection type: 6 universal receptacle
7. Number of cables: 1
8. Battery Type: Lead-acid battery
9. Mount mode: Not Rack-mountable

Input

1. Network frequency: 45…65 Hz +/- 0.1 Hz auto-sensing
2. Input voltage limits: 165…295 V

Output

1. Maximum configurable power in W: 2100 W
2. Output frequency: 50/60 Hz +/- 1 Hz unsynchronised
3. Crest Factor: 3:1
4. UPS type: Line Interactive
5. Wave type: Sine wave
6. Graph display: 1
7. Maximum configurable power in VA: 3000 VA
8. Transfer time: 2-6 ms typical : 12 ms maximum

Environmental

1. ambient air temperature for operation: 0..40 °C
2. relative humidity: 0…95 % non-condensing
3. ambient air temperature for storage: -10…40 °C
4. storage altitude: 0…1500 m

1. Automatic internal bypass
2. Pure static bypass switch without bridging contactor securing a fast and reliable transfer to and from bypass, rated for 125% nominal load.
3. Automatic restart of loads after UPS shutdown
4. Automatically starts up the connected equipment upon the return of utility power.
5. ECO Mode
6. Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
7. Input power factor correction
8. Minimizes installation costs by enabling the use of smaller generators and cabling.
9. Intelligent battery management
10. Maximizes battery performance, life, and reliability through intelligent, precision charging.
11. Intelligent Card Slot
12. Customize UPS capabilities with management cards.

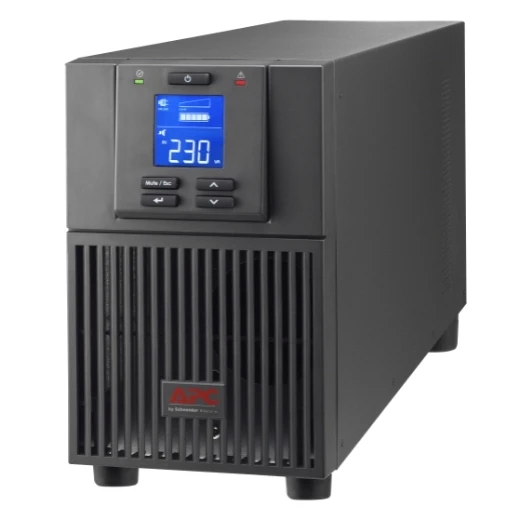

13. LCD graphics display
14. Text and mimic diagrams that display modes of operation, system parameters and alarms.
15. Serial connectivity
16. Provides management of the UPS via a serial port.
17. USB connectivity
18. Provides management of the UPS via a USB port (not available on all models).

Easy UPS On-Line Features & Benefits

Serviceability

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Predictive failure notification.

Provides early-warning fault analysis ensuring proactive component replacement.

Audible alarms

Provides notification of changing utility power and UPS power conditions

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Manageability

Network manageable

Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

Serial connectivity

Provides management of the UPS via a serial port.

LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.

LED Indicators

Provide easy-to-read status of the unit and utility power conditions.

Intelligent Card Slot

Customize UPS capabilities with management cards.

Features

ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring.

Management Software

Double conversion on-line topology

Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.

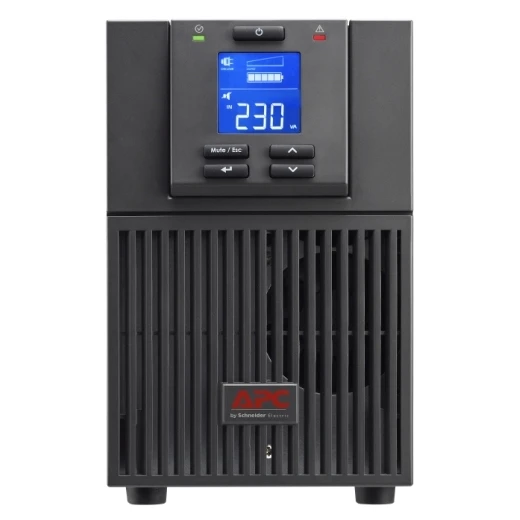

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

High efficiency

High efficiency rates that remain stable even at lower operating power levels

Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Management Software

Allows you to easily monitor your utility power and manage your UPS.

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Availability

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.
